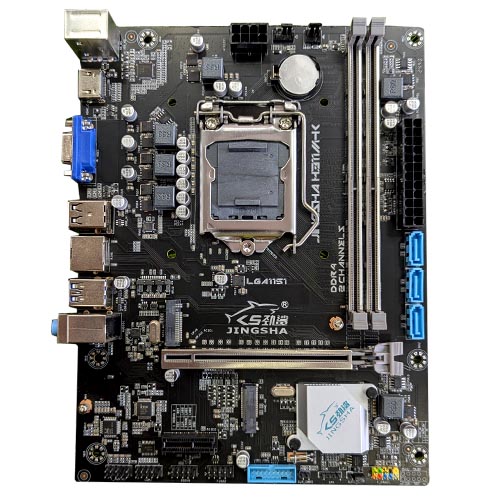

JINGSHA H311M-K Motherboard

Specifications:
Model：H311M-K LGA1151 Motherboard

Processor：Intel Socket LGA1151 GEN 6/7/8/9

Display：1*HDMI, Support 4K/30Hz ,1 *VGA

Memory：2*UDIMM DDR4 1866/21 33/2400/2666MHz

(Base on CPU),Dual channel,Up to 32GB

Storage：3*SATA3.0 Port, 1*M.2 2280 NVMe x4 Port,

1*M.2 2280 NGFF SATA SSD Port

USB：4*USB2.0 Ports, 4*USB3.0 Ports

L AN：1*RTL8111H, 1000Mbps Ethernet

BIOS：AMI EFI BIOS

Back Panel connectors：

1*HDMI, 1*VGA, 2*USB3.0 Port, 2*USB2.0 Port,

1*RJ45 LAN Port, 1*Audio 3-in-1(L .ine outLine-in/MIC),

1*PS/2 Keyboard, 1*PS/2 Mouse

Other Onboard connectors：

1*4pin CPU Smart FAN header, 1*SYS FANheader,

1*Front Audio header, 1*USB3.0 header(for two USB3.0 ports),

1*USB2.0 header(for twoUSB2.0 ports),

1*RS232 COM header, 1*Front control panel header, 1*Speaker header,

1*24pin ATX connector, 1*8pin 12V connector

Expansion slot：

1*PCIE3.0 x16 slot，1*PCIE3.0x1 slot

From factor：Micro-ATX 223mm*170mm
